Battery backup:
Field replaceable, nonrechargeable, lithium 9 V battery
Electrical field connections:
IP65 rated Deutsch DT series connectors
Enclosure:
IP65 rated metal enclosure
Indications:
Alarm: red LED
Buzzer
Discharged: red LED
Fault: amber LED
Isolated: amber LED
Power: FAULT amber LED
Power: ON green LED
Shutdown: amber and red LEDs
Inputs:
1 detection input (supervised for open circuit and earth faults). Suitable for use with LHD cable and thermal probes
1 discharge confirmation input (latching)
Manual Controls:
ACK/TEST: push button used to:
Test (panel idle): Operates all audible and visual indicators and auxiliary output
Acknowledge: Suppresses audible fault and alarm indications
Delay: Shutdown extension push button
DIM: push button used to:
In the normal state: Adjust the brightness of the LED indicators
In FAULT state: Provides access to the faultfinding diagnostic function (common system faults)
Fault: Fault finding function to identify fault type
Fire System Discharge: A missile-style
Internal Battery: OFF push button
Isolate: push button located on panel printed circuit board (PCB). Used to isolate actuation, shutdown and auxiliary outputs for testing purposes
System Reset: Used to reset panel following fault or alarm indications
Outputs:
1 auxiliary output relay (singlepole, doublethrow), rated for 2 amps

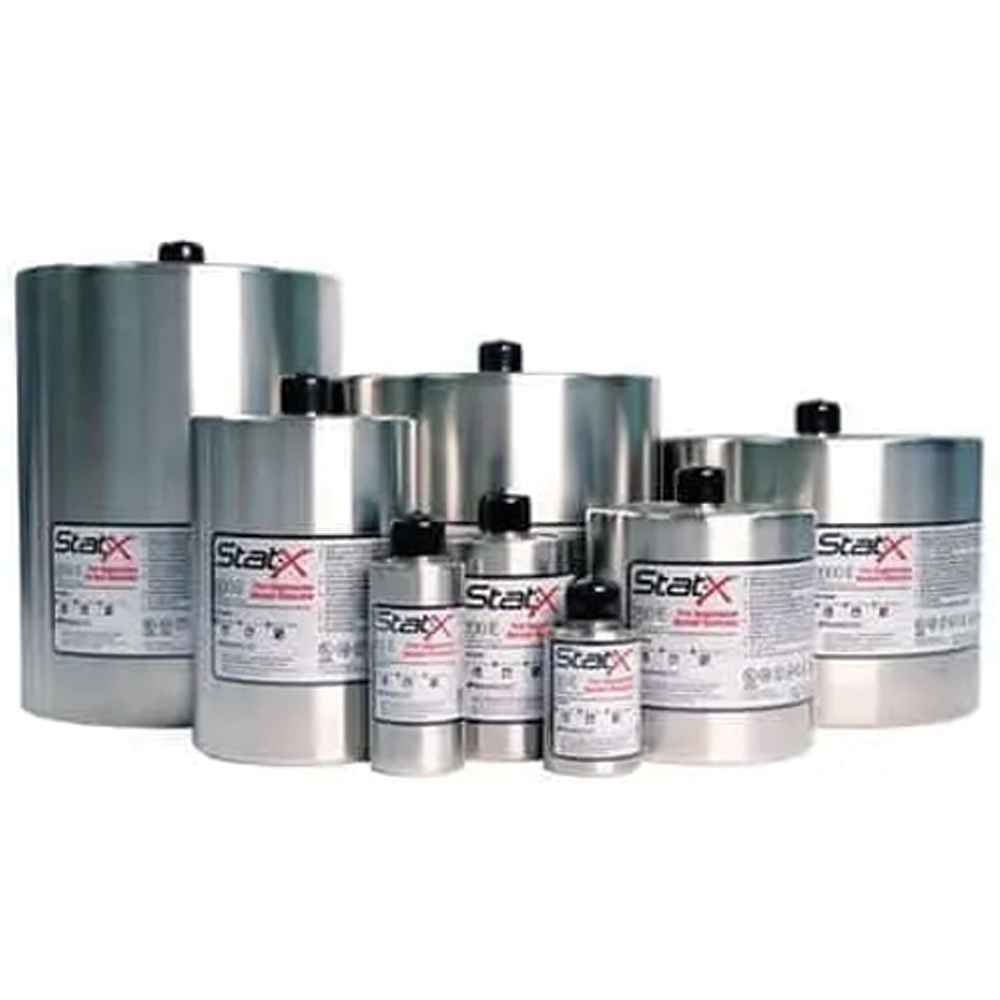

1 discharge output (supervised for open circuit and earth faults). Capable of activating up to a maximum of 5 StatX aerosol generators, connected in a series
Configurable: For manual or automatic activation
With discharge delay periods of: 0 (default), 5, 10, 15, 20, 30 and 40 seconds OR to coincide with shutdown output operation
1 engine shutdown relay, (singlepole, doublethrow), rated for 2 amps with selectable delay periods of 0 (default), 5, 10, 15, 20, 30, 40 and 60 seconds
Power Supply:
Nominal 8 to 30 V DC
