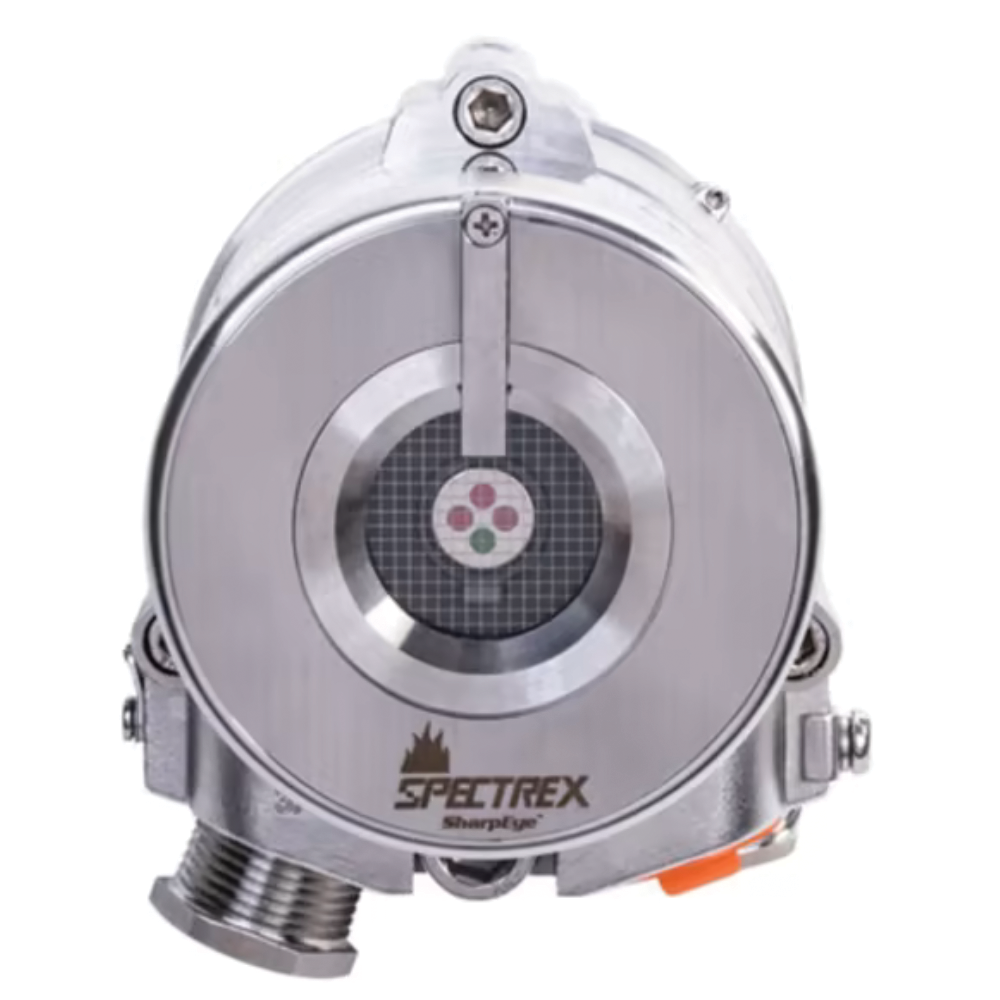

Spectrex 40/40D Series

Model: 40/40D

The SharpEye next generation 40/40D series features ultra fast fastest detection of hydrocarbon-based fuel and gas fires at the longest distance at up to 90m using pioneering QuadSense technology – the next step in the optical flame detection industry with best-in-class performance and reliability.

The series is suited to meet the challenges of any high-risk industrial application with revolutionary UV/IR BIT and smart field of view optical integrity for flawless operation, widest operation temperature range in extreme weather conditions providing trustworthy protection of major value property and personnel to keep a SharpEye on your safety.

Specifications

Technical Specifications

Detection Range:

40/40D-I: 90m
40/40D-M: 90m
40/40D-LB: 28m
40/40D-L4B: 28m

Coverage Area - square metres:

40/40D-I: 6336
40/40D-M: 5426
40/40D-LB: 641
40/40D-L4B: 641

Coverage Area - cubic metres:

40/40D-I: 446357
40/40D-M: 321832
40/40D-LB: 13356
40/40D-L4B: 13356

Standard Response Time:

40/40D-I: Typically <2 sec at 40m
40/40D-M: Typically <2 sec at 40m
40/40D-LB: Typically 5 sec at 28m
40/40D-L4B: Typically 5 sec at 28m

Ultra Fast Response Time:

40/40D-I: Typically <1 sec at 30m
40/40D-M: Typically <1 sec at 30m
40/40D-LB: 20 msec for flash fire pan fire from 3m distance via analog voltage output
40/40D-L4B: 20 msec for flash fire pan fire from 3m distance

High Speed Response Time (explosion):

40/40D-I: 50 msec for 1ft diameter sphere LPG-air mixture explosion at 20m via analog voltage output
40/40D-M: 50 msec for 1ft diameter sphere LPG-air mixture explosion at 20m via analog voltage output
40/40D-LB: 50 msec for 1 ft diameter sphere LPG-air mixture explosion at 10m via analog voltage output
40/40D-L4B: 50 msec for 1 ft diameter sphere LPG-air mixture explosion at 10m via analog voltage output

Field of View:

40/40D-I: Horizontal 100°; Vertical 95°
40/40D-M: Horizontal 80°; Vertical 80° - for Gasoline Horizontal 90°; Vertical 90° - for Hydrogen
40/40D-LB: Horizontal 100°; Vertical 95°
40/40D-L4B: Horizontal 100°; Vertical 95°

Temperature Range:

40/40D-I: -60 °C to +85 °C
40/40D-M: -60 °C to +85 °C
40/40D-LB: -60 °C to +85 °C
40/40D-L4B: -60 °C to +85 °C
