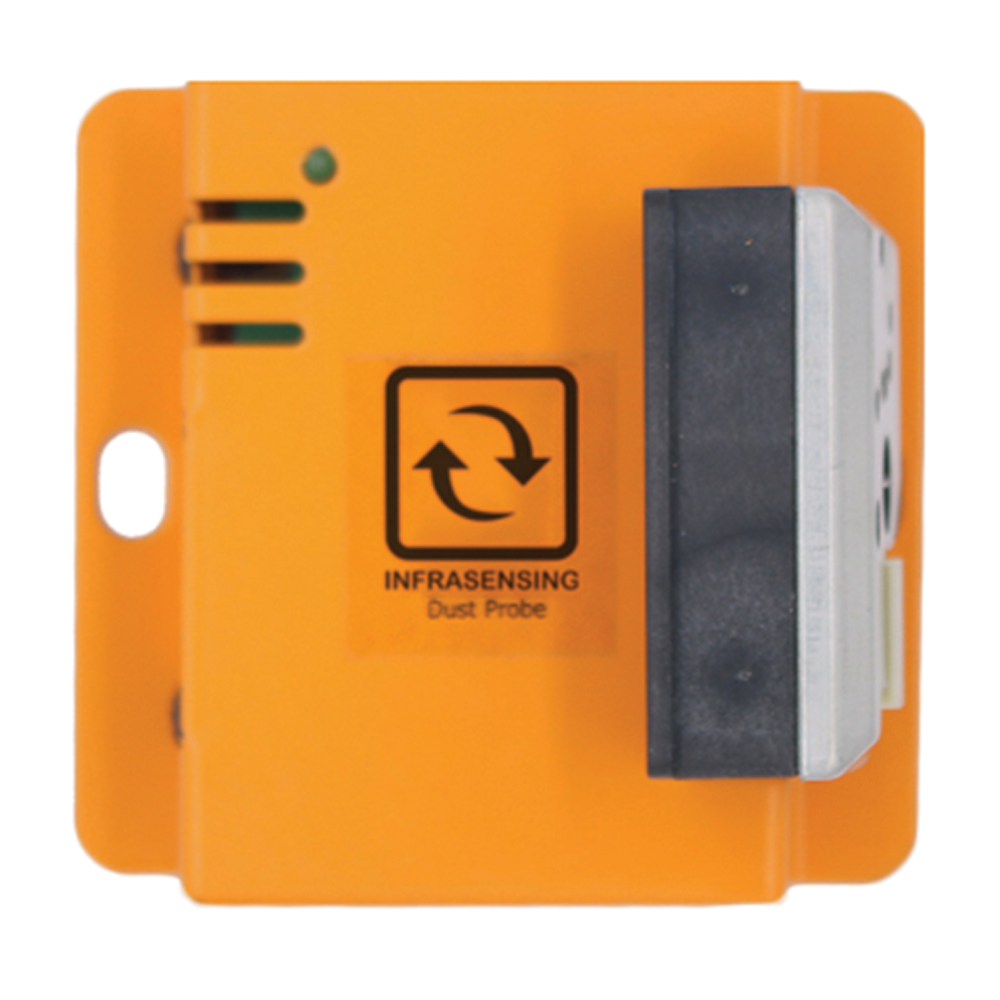

Compact & affordable optical dust sensor made in Japan
Reports dust density in mg/m³
Range: 0 to 600 μg/m³
measures total dust density (PM2.5 & PM10 combined)
Sensitivity: 100 μg/m³
Specifications
Technical Specifications
Specifications:
Power Source: SensorGateway (BASE-WIRED)
Power Usage: 156mW
Range: 0 – 600 μg/m³
Particle size: PM2.5 and PM10
Sensitivity: 100 μg/m³
Measurement mechanism: Optical
Environmental and Physical Specification:
Operating temperature range: 0ºC to +75ºC in PoE mode
Sensor Housing Material & RJ45 cable gland protection rating: IP 68
Dimensions: 71.5mm x 68mm x 23mm
Weight: 0.14kg
