Installation

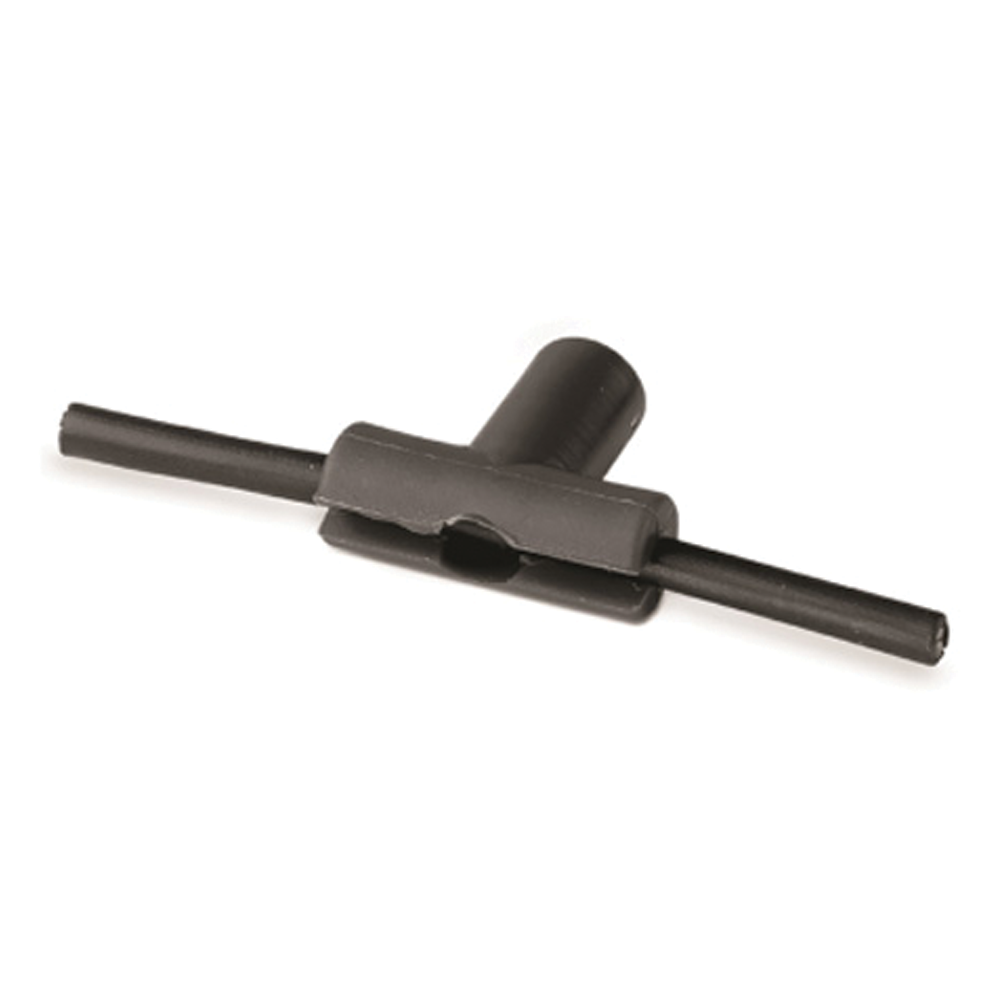

The clip is secured with a screw and wall plug using an M8 pan head screw self tapping screw. For extra security a tie wrap may be used to prevent the cable from being pulled from the clip. A figure-8 configuration on the tie wrap is ideal for this. Spacing for clips is recommended every meter along the length of the cable. Two clips in close proximity are used at 90 degree bends or where the cable route changes direction. For space protection applications, the ideal location for the heat sensing cable is on the ceiling or the top of the sidewall. this ensures that the cable is rapidly exposed to the plume of hot gases from any event that may arise and spread across the ceiling.
