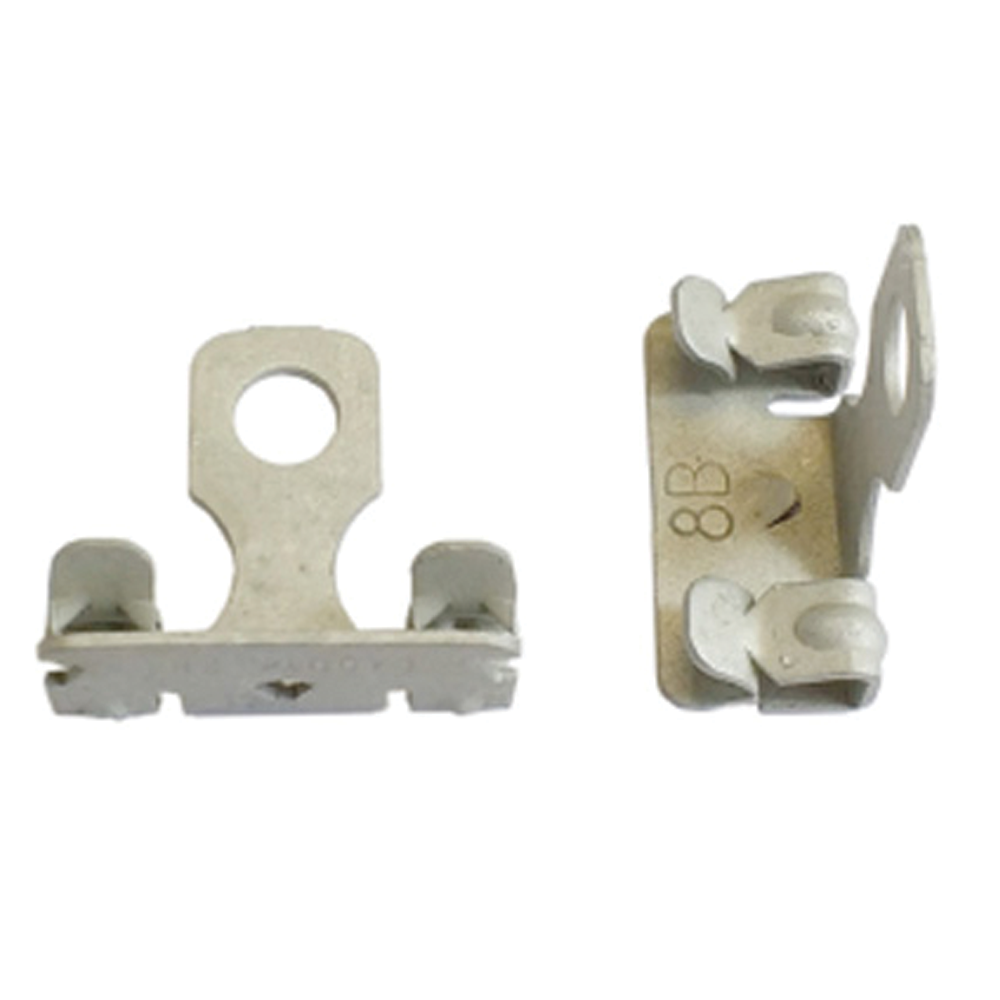

LHD Clip (Edge)

Model: ACA-CE-AU

Overview
The ACA-CE series “Edge” clip is designed to secure linear heat sensor cable to metal structures such as girders, steel sections, angle bars, floating roof storage tank rim seals, foam dams etc. Is is available to mount on steelwork of differing thickness and provides a stand-off for the sensor cable ensuring rapid response.

Detail

Installation
A fixing hole in the clip allows the securing of the sensor cable. The sensor cable should be secured to the clip with a silicone sleeve (ACA-RS) and tie wrap (ACA-TW) of suitable rating. The fixing hole can also allow the fixing of a distance piece (I-bracket) to extend the position of the sensor cable.

Recommended spacing: 1m.
