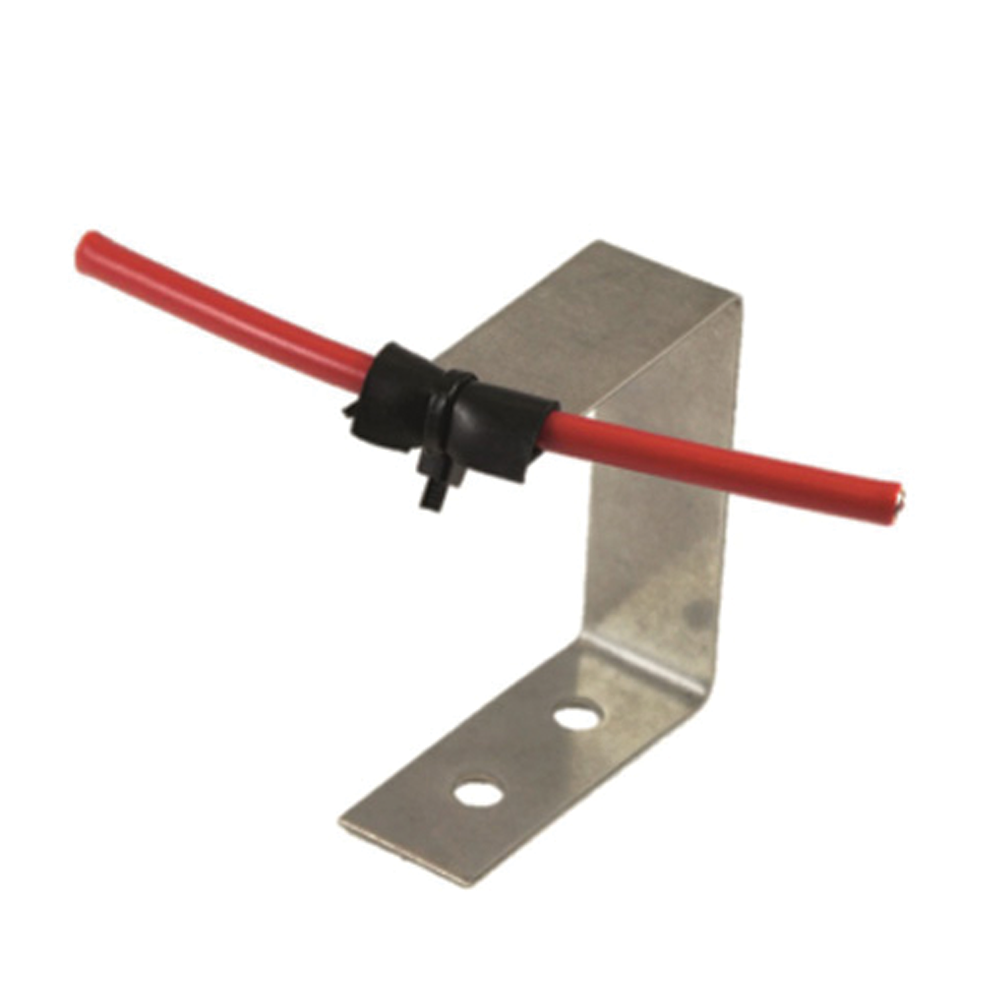

LHD Bracket (U) with sleeve

Model: ACA-BU06

Overview
The ACA-BU06 series U-bracket (channel bracket) is designed to secure linear heat cable to metal surfaces where there is no return edge available to fix a bracket or clip, eg. fixed roof storage tanks. A silicon protection sleeve is supplied with the unit to protect the linear heat cable when fastened to the bracket.

Detail

Installation
The ACA-BU06 should be secured in place using suitable bolt and nut at one end. The hole at the other end of the bracket allows for the securing of the sensor cable using a silicone sleeve and cable tie. The U-bracket (channel bracket) supports the sensor cable approximately 60m away from the mounting point.

Recommended spacing: 1m.
