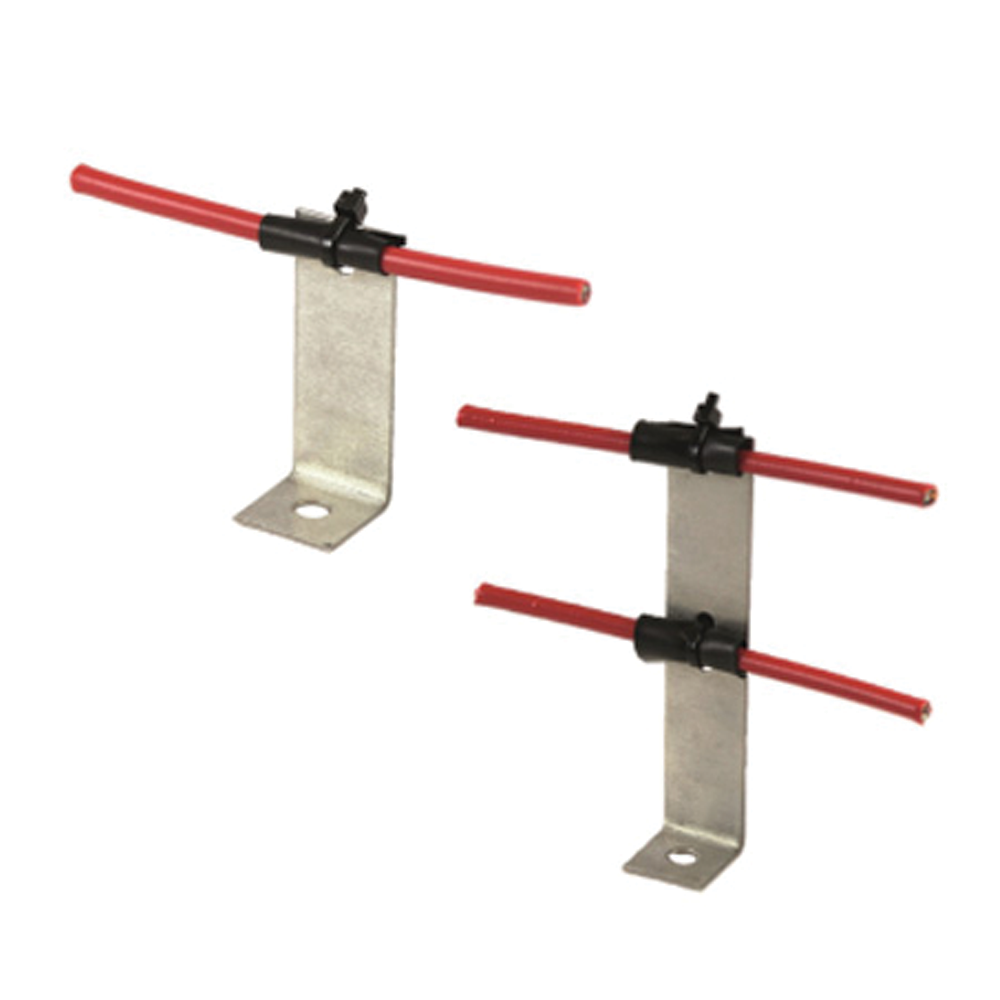

LHD Bracket (L) with sleeve

Model: ACA-BL-AU

Overview
The ACA-BL series L-bracket is designed to support linear heat cable above the risk area, e.g. the top run of a cable tray. A silicon protection sleeve is supplied with the unit to protect the sensor cable when fastened to the bracket.

Detail Key Features Documents
Detail

Installation
The ACA-BL may be fitted to the cable tray and secured in place using a suitable bolt and nut at one end. The hole at the other end of the bracket allows for the securing of the sensor cable using a silicone sleeve and cable tie. The L-bracket allows support for the sensor cable at the selected distance away from the detection area.

Recommended spacing: 1m.
