Addressing Requirements:
Uses 1 module address
Operating Current:
Standby: 250µA
Activated: 400µA
Operating Voltage:
15.2 to 19.95 Vdc (19 Vdc nominal)
Operating Temperature:
0 to 49oC
Storage Temperature:
-20oC to 60oC
Humidity Range:
0 to 93% RH
LED Operation:
On-board RED LED - flashes when in alarm; Glows steady flashes when in alarm-stand-alone mode
Compatibility:
Use with Signature Loop Controller

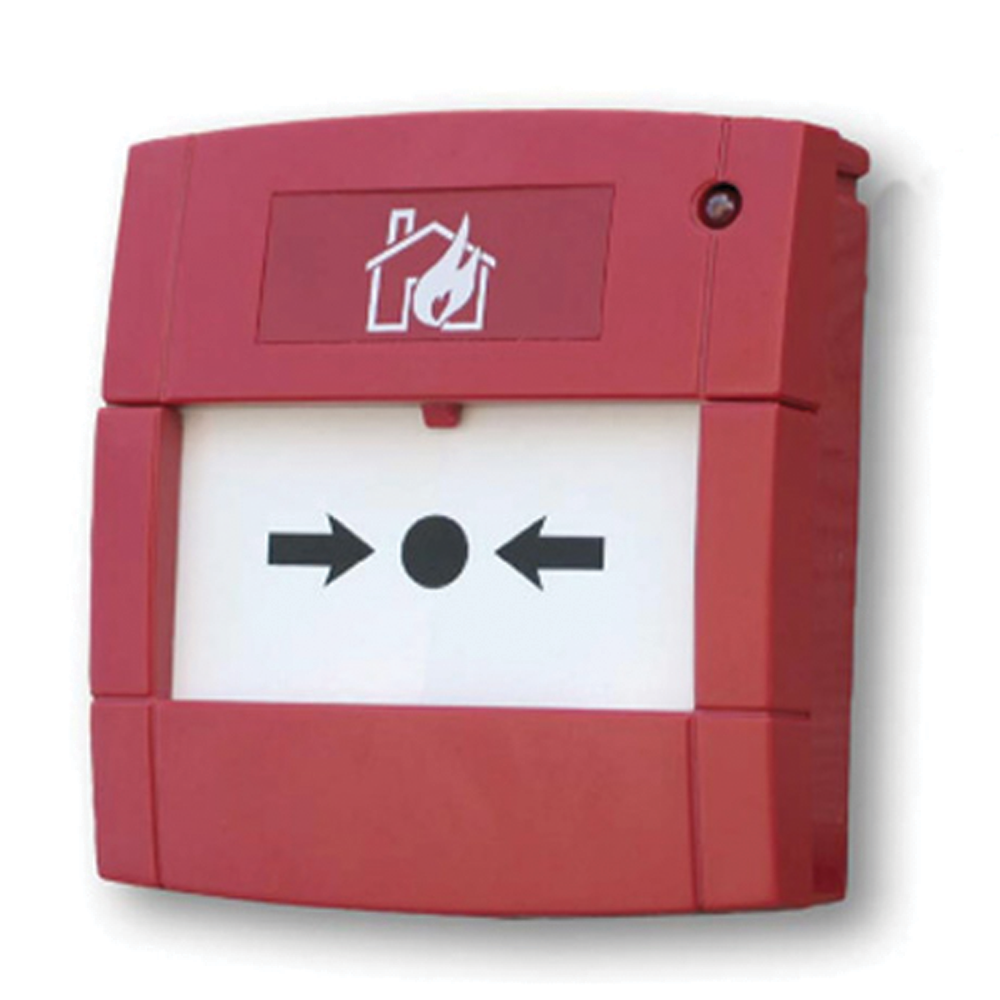

Call Point Material:
Thermoplastic (red)
