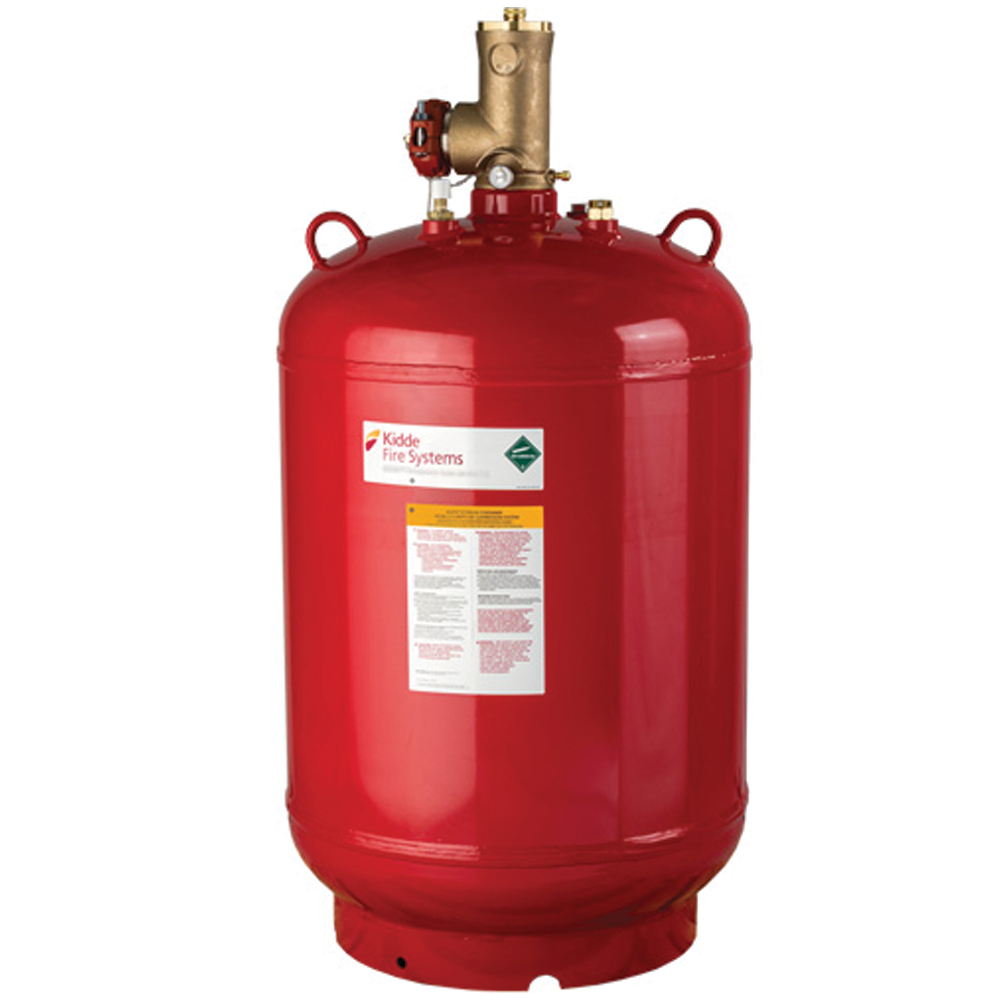

ECS-500™ with Kidde Fluoro-K Fire Suppression Agent
Model: ECS™ 500 psi
The Kidde ECS-500™ type Clean Agent Suppression System using Fluoro-K provides superior performance compared to standard 360 psi (25 bar) systems. The higher storage pressure of 500 psi (35 bar) enables improvement of agent travel distance for applications where ADS™ performance levels are not required. Now you have the flexibility of a mid-tier solution to meet application size, design requirements and the client’s budget.
The ECS-500 system provides all the benefits of the standard ECS system with added advantages that provide improved system design flexibility and reduced installation and material costs:
New 1,100 lb. cylinder reduces cylinder quantities and installation time required, while providing enough agent to cover up to a 27,000 cubic feet area with a single cylinder
Increased system pressure allows for longer pipe runs and use of smaller pipe diameters
Provides flexibility to remotely locate cylinder storage area more than twice the distance from the hazard area when compared to 360 psi/25 bar systems
Key Features
A wide range of filling capacities from 6 lbs. to 1,100 lbs.
Fire protection of up to 27,000 cubic feet with a single cylinder
Provides economical protection of multiple enclosures when used with directional valves
