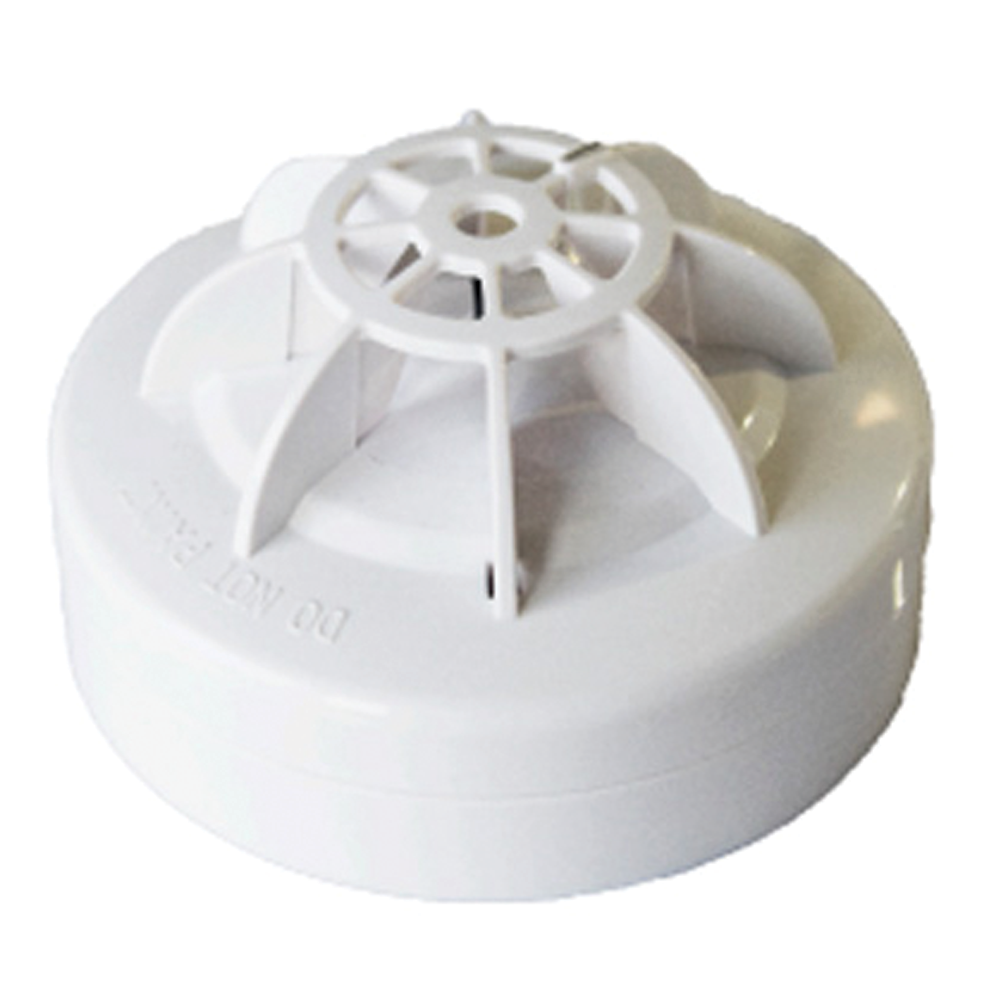

Conventional Rate of Rise and Fixed Temperature Heat Detector

Model: DC-9103E-KID

DC-9103E-KID is the new Generation of Conventional Rate of Rise and Fixed Temperature Heat from KIDDE. The DC series Detectors have a microprocessor and use Advanced Algorithms to reliably Detect Fire alarm conditions.

By Default, the DC-9103E-KID is supplied as an A1R class Heat Detector. Using the Handheld Programmer, the installer can easily program the device as an A2S or BS Detector without the need to carry 3 different heat detectors to a site.

Specifications

Technical Specifications

Operating Voltage:

24VDC(16VDC~28VDC)

Standby Current:

≤60μA

Alarm Current:

≤55mA

Fire LED:

Red, periodically flash once in polling when the status is set to “ON”.
No illumination when the status is set to “OFF”.
Periodically flash twice in fault
Steady illumination when in alarm

Remote indication output:

Polarity-sensitive, directly connecting with remote indicator (built in 10k resistor in series, maximum output current is 2.0mA)

Max. ripple voltage:

2V ( peak-to-peak)

Alarm Reset:

Instantaneous cut-out (10s Min, 1.0VDCMax.)

Class and Setup:

Classes A1R, A2S, BS programmable

Wiring:

Polarised two wire

Ingress Protection Rating:

IP2X
